The Benefits of Hybrid Ceramic Bearings in Electric Motors

Discover the advantages of ceramic hybrid bearings in electric motors.

Improve efficiency, increase speed, and reduce vibrations for optimal performance.

Ceramic hybrid bearings in electric motors offer remarkable benefits, optimizing efficiency, speed, and precision.

In this article, we delve into the advantages of these bearings, explore their applications in different industries, compare them with other bearing technologies, and provide maintenance tips.

The Benefits of Hybrid Ceramic Bearings in Electric Motors:

1.Improved Efficiency and Energy Savings

2.Higher Speed Capabilities

3.Quieter Operation and Reduced Vibration

4.Enhanced Precision and Control

Discover the impact of hybrid ceramic bearings on electric motor performance and learn about their applications in industries such as manufacturing, transportation, and renewable energy.

Gain insights into the maintenance and care required for these bearings.

Join us to unlock the power of ceramic hybrid bearings for electric motor performance.

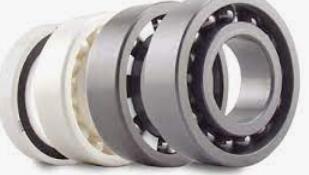

What are ceramic hybrid bearings?

What are ceramic hybrid bearings?

Hybrid ceramic bearings are advanced bearing solutions that combine the advantages of both ceramic and steel materials.

These bearings feature ceramic balls, typically made of silicon nitride, while the inner and outer rings are usually made of steel.

This combination offers several advantages over traditional steel bearings and full ceramic bearings in electric motors.

Impact of Hybrid Ceramic Bearings on Electric Motor Performance:

Impact of Hybrid Ceramic Bearings on Electric Motor Performance:

A. Improved Efficiency and Energy Savings:

Hybrid ceramic bearings reduce friction and offer superior wear resistance compared to traditional steel bearings.

The ceramic balls have a much smoother surface finish, resulting in reduced friction and lower heat generation during operation.

As a result, electric motors equipped with hybrid ceramic bearings experience improved efficiency, leading to energy savings and increased overall performance.

B. Higher Speed Capabilities:

The lower friction and lighter weight of hybrid ceramic bearings enable electric motors to operate at higher speeds.

Ceramic balls have a lower density than steel balls, which reduces the centrifugal force acting on the balls at high rotational speeds.

This characteristic allows electric motors to achieve faster acceleration and higher RPM (revolutions per minute) capabilities,

making them suitable for applications that demand rapid and precise movements.

C. Quieter Operation and Reduced Vibration:

Hybrid ceramic bearings offer exceptional shock-absorbing capabilities and reduce the level of vibrations within electric motors.

The ceramic balls dampen vibrations more effectively compared to steel balls, resulting in smoother and quieter motor operation.

This advantage is particularly important for applications where noise reduction is a priority, such as in electric vehicles or precision equipment.

D. Enhanced Precision and Control:

The high stiffness and dimensional stability of hybrid ceramic bearings contribute to improved precision and control in electric motor applications.

These bearings exhibit minimal deformation under load, allowing for precise positioning and accurate control of the motor's rotational movement

The reduced elastic deformation also leads to better repeatability, making hybrid ceramic bearings suitable for applications requiring high levels of precision, such as robotics or CNC machines.

Types of Hybrid Ceramic Bearings for Electric Motors:

Types of Hybrid Ceramic Bearings for Electric Motors

A. Angular Contact Ball Bearings:

Angular contact ball bearings are designed to handle both radial and axial loads.

These bearings have a contact angle that enables them to support higher axial loads and provide excellent rigidity.

They are commonly used in electric motor applications that require high-speed rotation and thrust capacities, such as machine tools, pumps, and compressors.

B. Deep Groove Ball Bearings:

Deep groove ball bearings are versatile and widely used in electric motors due to their low friction and high-speed capabilities.

They can accommodate both radial and axial loads and are suitable for applications with moderate to high radial loads.

Deep groove ball bearings find applications in electric motors used in appliances, power tools, fans, and many other industrial and consumer products.

C. Cylindrical Roller Bearings:

Cylindrical roller bearings are designed to withstand high radial loads and moderate axial loads.

These bearings have high radial rigidity and can accommodate misalignment, making them suitable for electric motor applications that experience heavy loads and variable operating conditions.

Cylindrical roller bearings are commonly used in electric motors for conveyors, pumps, and heavy machinery.

Applications for Hybrid Ceramic Bearings in Electric Motors:

A. Industrial and Manufacturing Processes:

Hybrid ceramic bearings find extensive applications in various industrial processes, including manufacturing equipment, machining centers, robotics, and automation systems.

The improved efficiency, higher speed capabilities, and enhanced precision of these bearings contribute to the overall productivity and performance of these systems.

B. Transportation Industry:

The transportation industry, including electric vehicles (EVs) and hybrid electric vehicles (HEVs), greatly benefits from hybrid ceramic bearings.

The reduced weight, lower friction, and enhanced efficiency of these bearings contribute to increased range, improved fuel efficiency, and extended lifespan of electric motors in vehicles.

C. Renewable Energy Sources:

Hybrid ceramic bearings play a crucial role in the renewable energy sector, particularly in wind turbines and solar power systems.

In wind turbines, hybrid ceramic bearings enable efficient power generation by reducing friction losses and allowing for higher rotational speeds.

These bearings also exhibit excellent resistance to corrosion, which is important in offshore wind farms where exposure to harsh environments is common.

In solar power systems, hybrid ceramic bearings are used in tracking mechanisms and heliostats to ensure precise solar panel positioning for optimal sunlight capture.

Maintenance and Care for Hybrid Ceramic Bearings in Electric Motors:

A. Proper Handling Techniques:

When handling hybrid ceramic bearings, it is important to avoid dropping or impacting them, as ceramic balls can be more brittle than steel balls.

Care should be taken to prevent any damage to the ceramic components, as this can compromise their performance.

B. Cleaning Procedures:

Regular cleaning is essential to maintain the performance of hybrid ceramic bearings.

They should be cleaned using appropriate solvents or cleaning agents recommended by the bearing manufacturer.

It is important to remove any contaminants that may accumulate on the bearing surfaces, as these can increase friction and reduce efficiency.

C. Lubrication Requirements:

Hybrid ceramic bearings typically require lubrication to ensure smooth operation and reduce wear.

It is crucial to use lubricants specifically designed for hybrid ceramic bearings and follow the manufacturer's guidelines regarding lubrication intervals and types of lubricants to be used.

Over-lubrication should be avoided, as it can lead to increased friction and overheating.

Comparison with Other Bearing Technologies for Electric Motors:

A. Traditional Steel Bearings:

Compared to traditional steel bearings, hybrid ceramic bearings offer lower friction, improved efficiency, and reduced heat generation.

They also have higher speed capabilities and better resistance to corrosion.

However, hybrid ceramic bearings tend to be more expensive than steel bearings, and their ceramic components may be more susceptible to damage if mishandled.

B. Full Ceramic Bearings:

Full ceramic bearings, unlike hybrid ceramic bearings, have both the inner and outer rings made of ceramic material.

While full ceramic bearings offer superior corrosion resistance and higher temperature capabilities, they may not be as durable as hybrid ceramic bearings due to the increased brittleness of ceramics.

Additionally, full ceramic bearings are generally more expensive and have limitations in load capacity and shock resistance compared to hybrid ceramic bearings.

C. Selection Factors for Choosing the Best Option:

When selecting the best bearing option for electric motors, several factors should be considered, such as load requirements, operating conditions, speed capabilities, cost, and maintenance needs.

Hybrid ceramic bearings are suitable for applications where high speeds, reduced friction, and improved efficiency are critical.

Traditional steel bearings may be more cost-effective for low to moderate speed applications with lower performance requirements.

Full ceramic bearings are ideal for extreme conditions involving high temperatures, corrosive environments, or specialized applications where weight reduction is crucial.

Recommendations for Choosing the Best Bearing Option for Electric Motors:

1.Assess the specific requirements of the electric motor application, including load conditions, speed requirements, and operating environment.

2.Consider the cost-effectiveness of each bearing option based on the expected performance and maintenance needs.

3.Evaluate the benefits of hybrid ceramic bearings, such as improved efficiency, higher speed capabilities, and reduced vibrations, and weigh them against the higher cost compared to traditional steel bearings.

4.If the application involves extreme conditions or specialized requirements like high temperatures or corrosive environments, full ceramic bearings may be the preferred choice despite their higher cost and potential limitations in load capacity.

5.Consult with bearing manufacturers or industry experts to determine the most suitable bearing option based on the specific application and performance expectations.

By considering these factors, electric motor manufacturers can make informed decisions when selecting the best bearing option to optimize the performance, efficiency, and reliability of their systems.


Unlock the power of ceramic hybrid bearings in electric motors and experience improved efficiency, higher speeds, reduced vibrations, and enhanced precision.

Explore their applications across industries and understand the maintenance requirements. Make an informed choice to optimize your electric motor's performance and efficiency.
